Shield Connectors

Description

Shield connectors reside in the Microsoft 365 tenant of the Shield organization. All connectors are added during Shield deployment.

Please ensure that all Shield updates are performed in order for Shield connectors to stay current. If you have not performed all updates for the Shield organization the connectors may look different.

Do not replace existing connectors with the connectors below. Instead, run a full deployment via View Deployments to properly update the organization.

Corresponding transport rules are detailed here.

Shield - Receive from Courier

Mail flow scenario

  • From: Your organization's email server
  • To: Office 365

Name

Shield - Receive from Courier

Status

On

How to identify email sent from your email server

Incoming messages from your email server are identified by verifying that:

  • The subject name on the connecting TLS certificate matches the configured domain:

    [a value unique to your M365 tenant]

  • The sender's email address is an accepted domain for your Microsoft 365 organization.

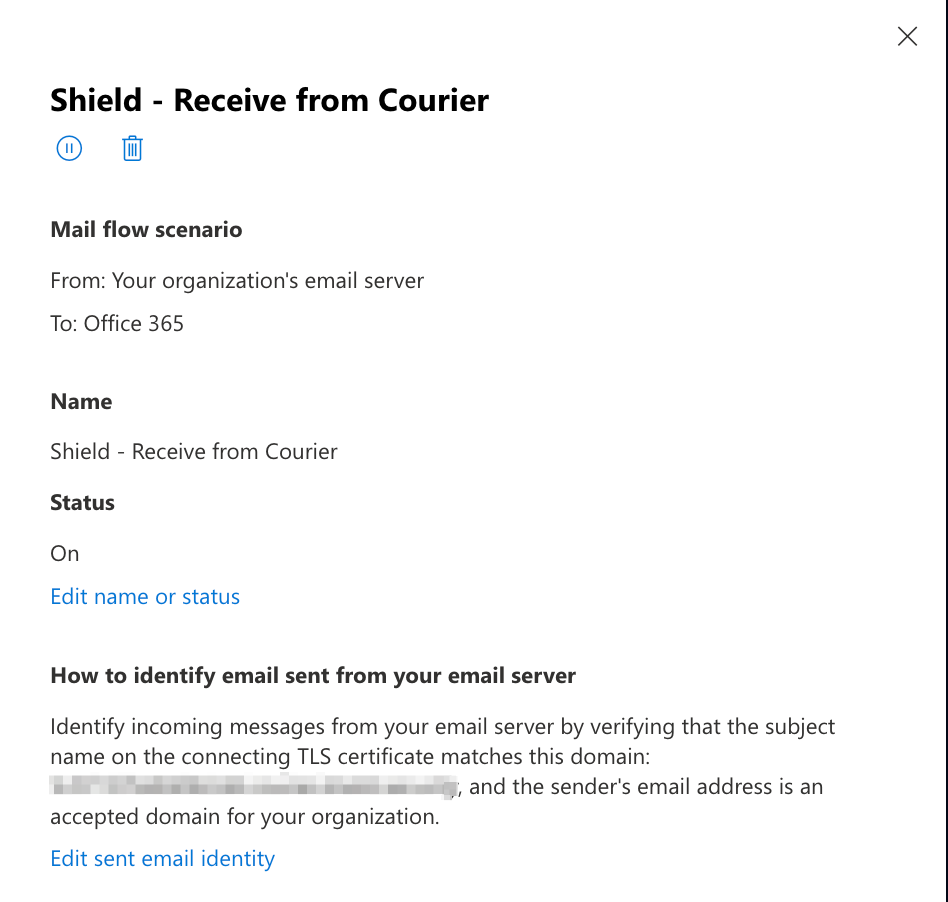

Shield - Receive from Courier.png

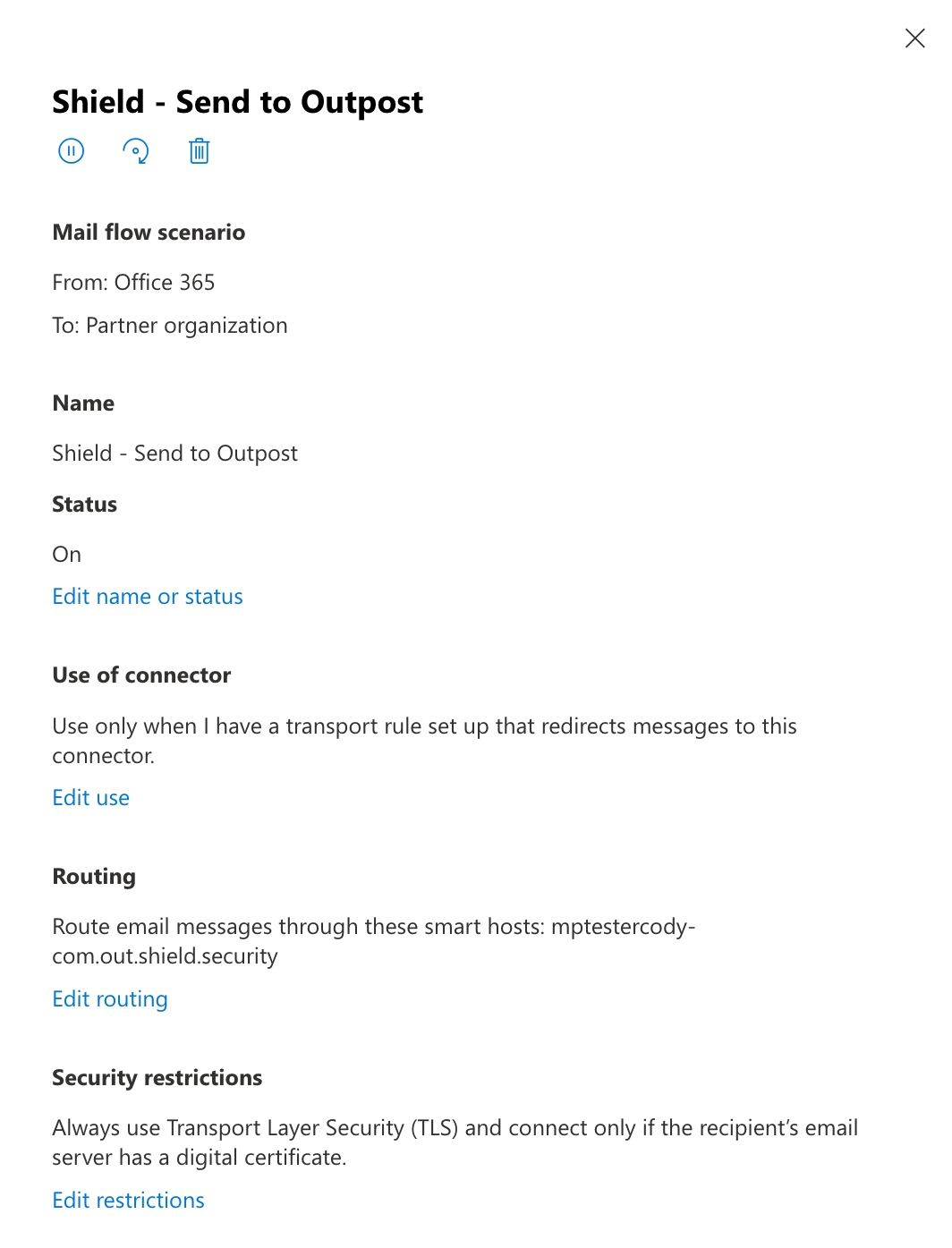

Shield - Send to Outpost

Mail flow scenario

  • From: Office 365
  • To: Partner organization

Name

Shield - Send to Outpost

Status

On

Use of connector

  • Use only when I have a transport rule set up that redirects messages to this connector.

Routing

  • Route email messages through these smart hosts: [a value unique to your M365 tenant]

Security restrictions

  • Always use Transport Layer Security (TLS).
  • Connect only if the recipient's email server has a digital certificate.

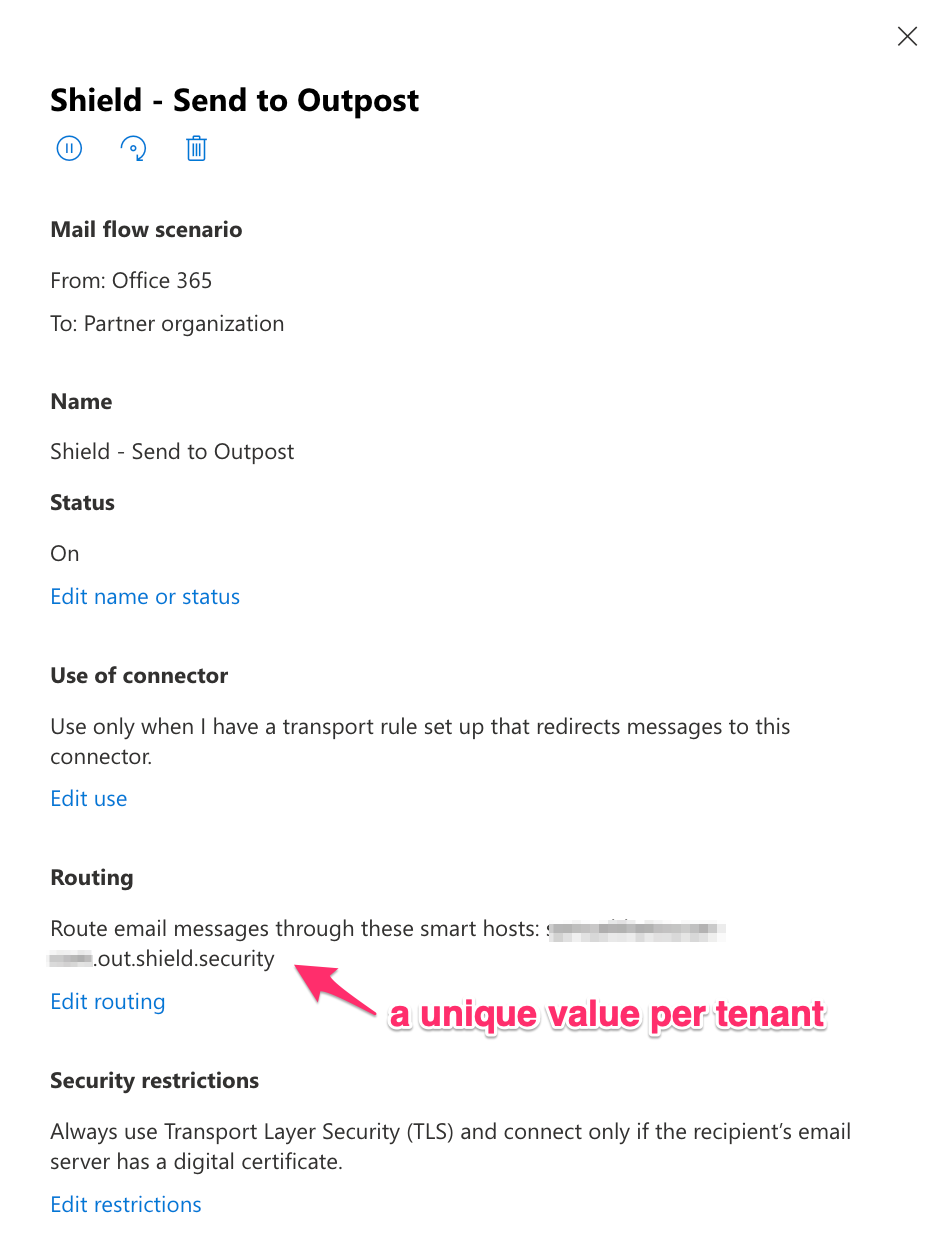

Shield - Send to Outpost connector.png

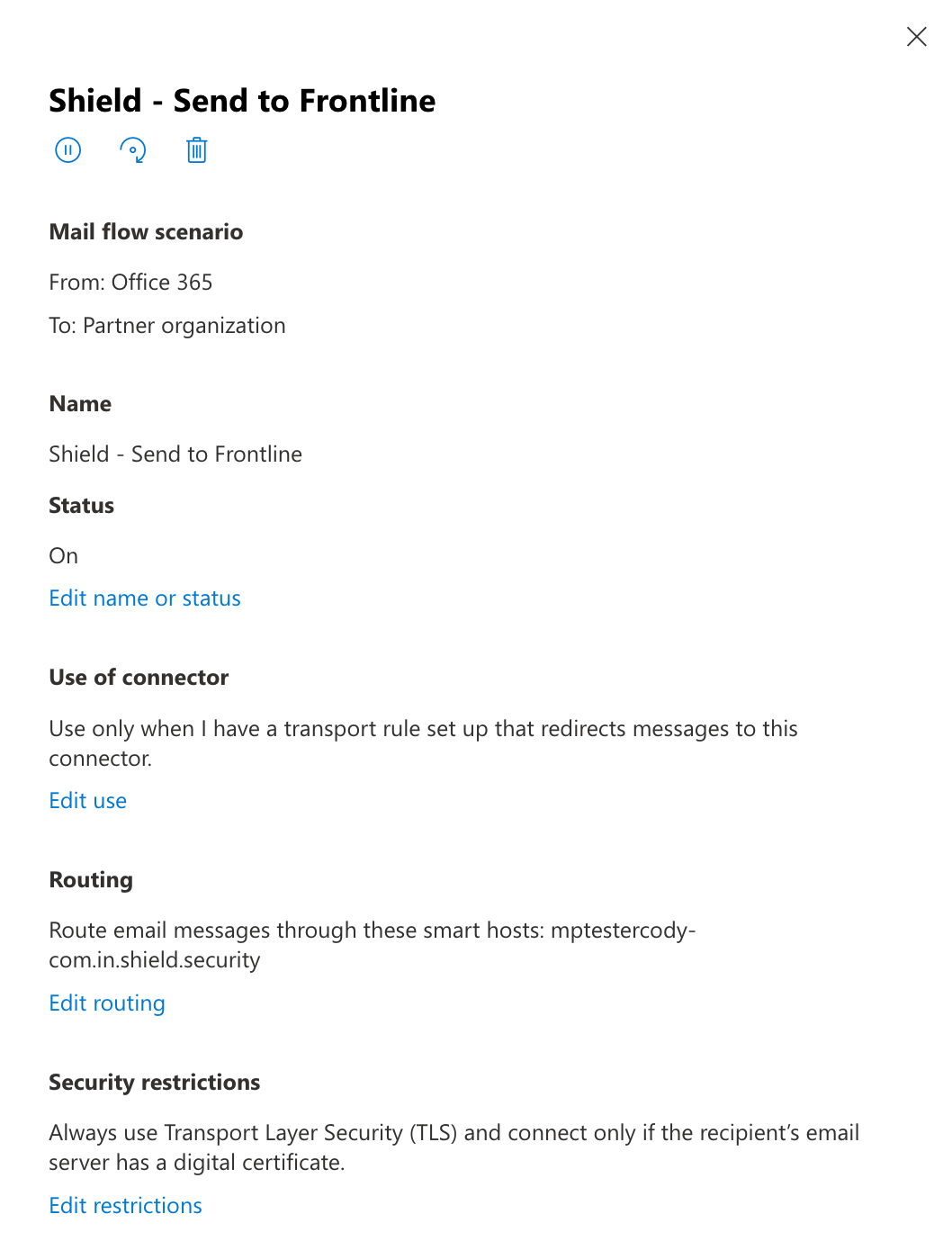

Shield - Send to Frontline

Mail flow scenario

From: Office 365
To: Partner organization

Name

Shield – Send to Frontline

Status

On

Use of connector

Use only when I have a transport rule set up that redirects messages to this connector.

Routing

Route email messages through these smart hosts: [a value unique to your M365 tenant]

Security restrictions

Always use Transport Layer Security (TLS) and connect only if the recipient's email server has a digital certificate.

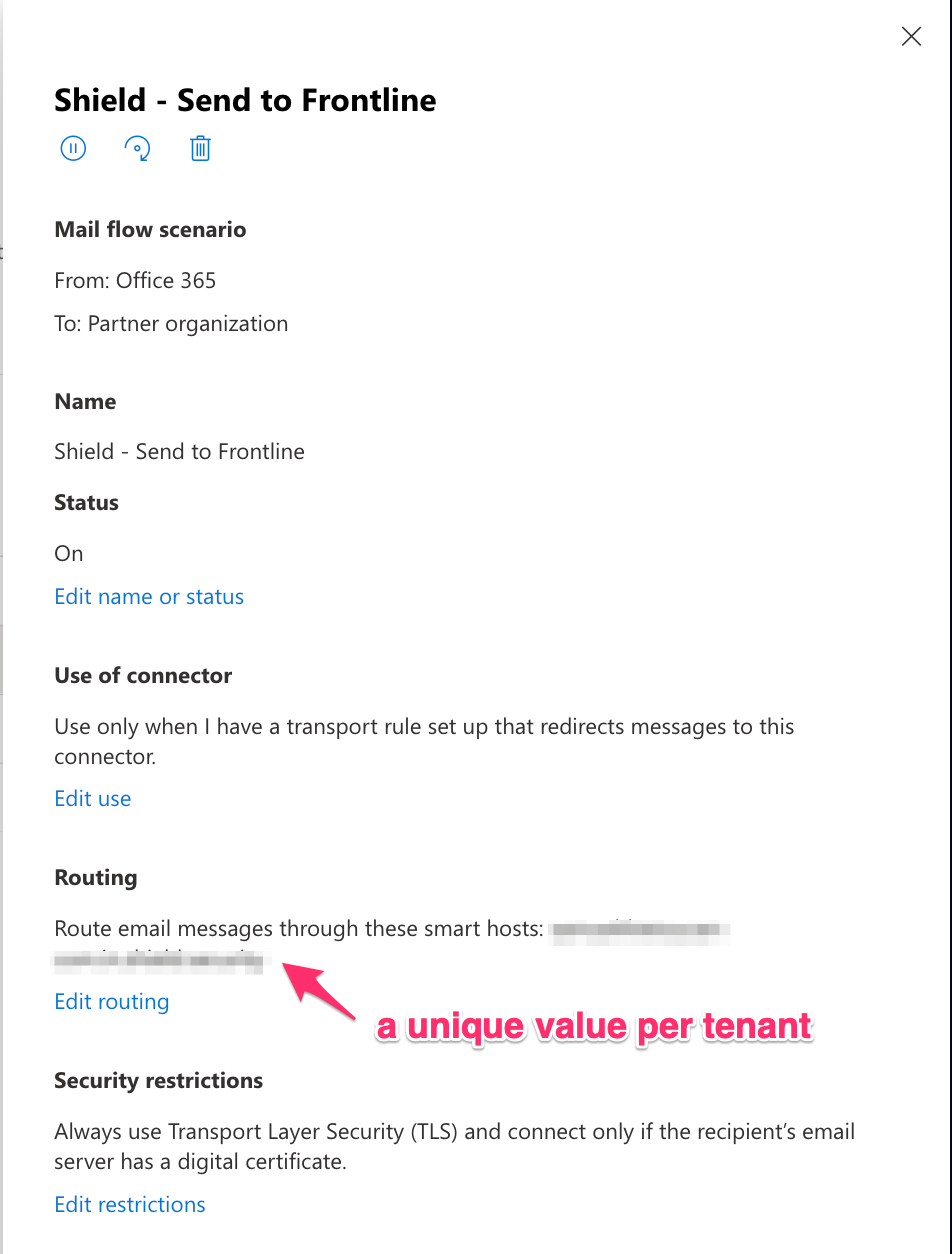

Shield - Send to Frontline connector.png

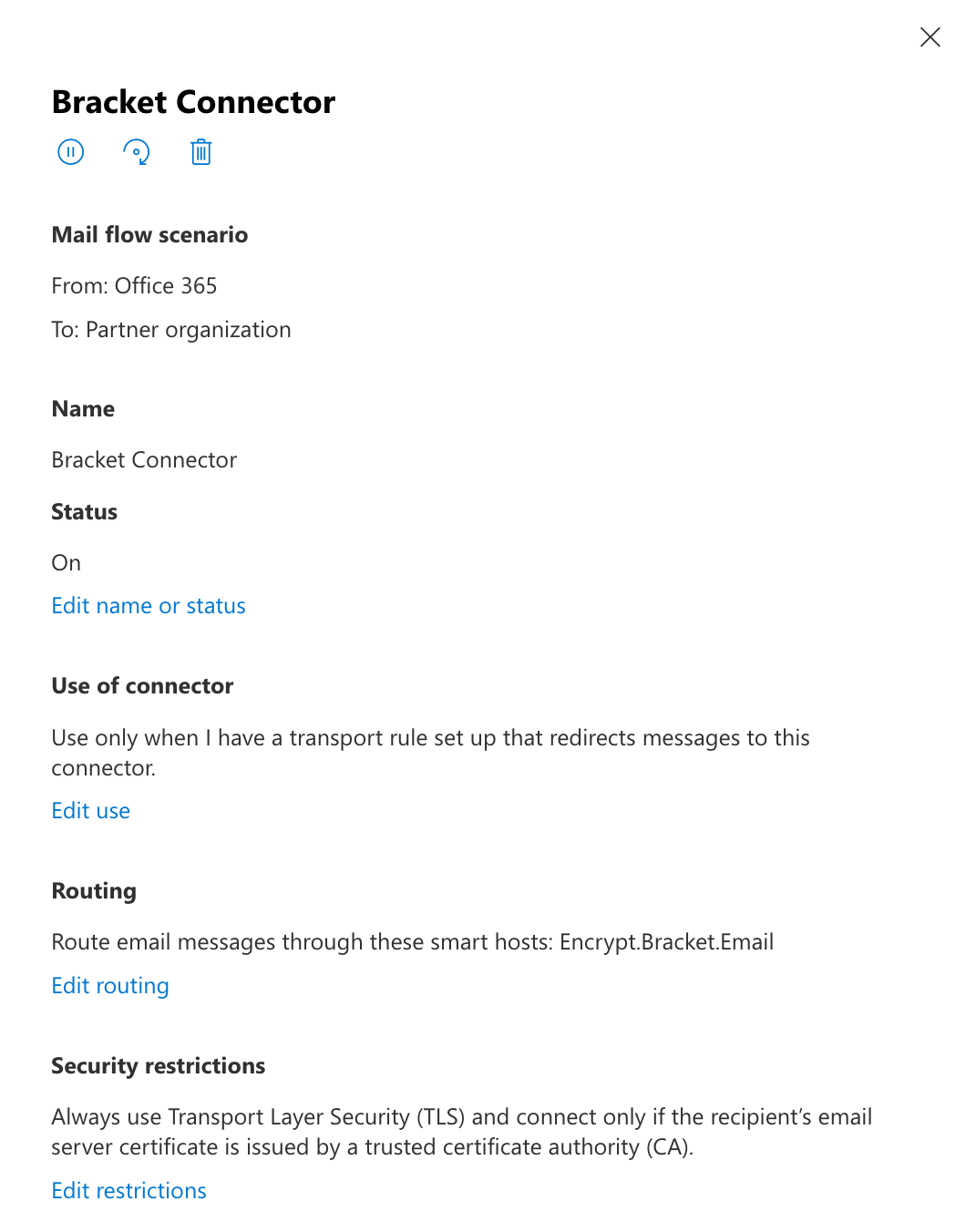

Bracket Connector

Mail flow scenario

From: Office 365
To: Partner organization

Name

Shield – Send to Bracket

Status

On

Use of connector

Use only when I have a transport rule set up that redirects messages to this connector.

Routing

Route email messages through these smart hosts:

encrypt.bracket.email

Security restrictions

Always use Transport Layer Security (TLS) and connect only if the recipient's email server certificate is issued by a trusted certificate authority (CA).

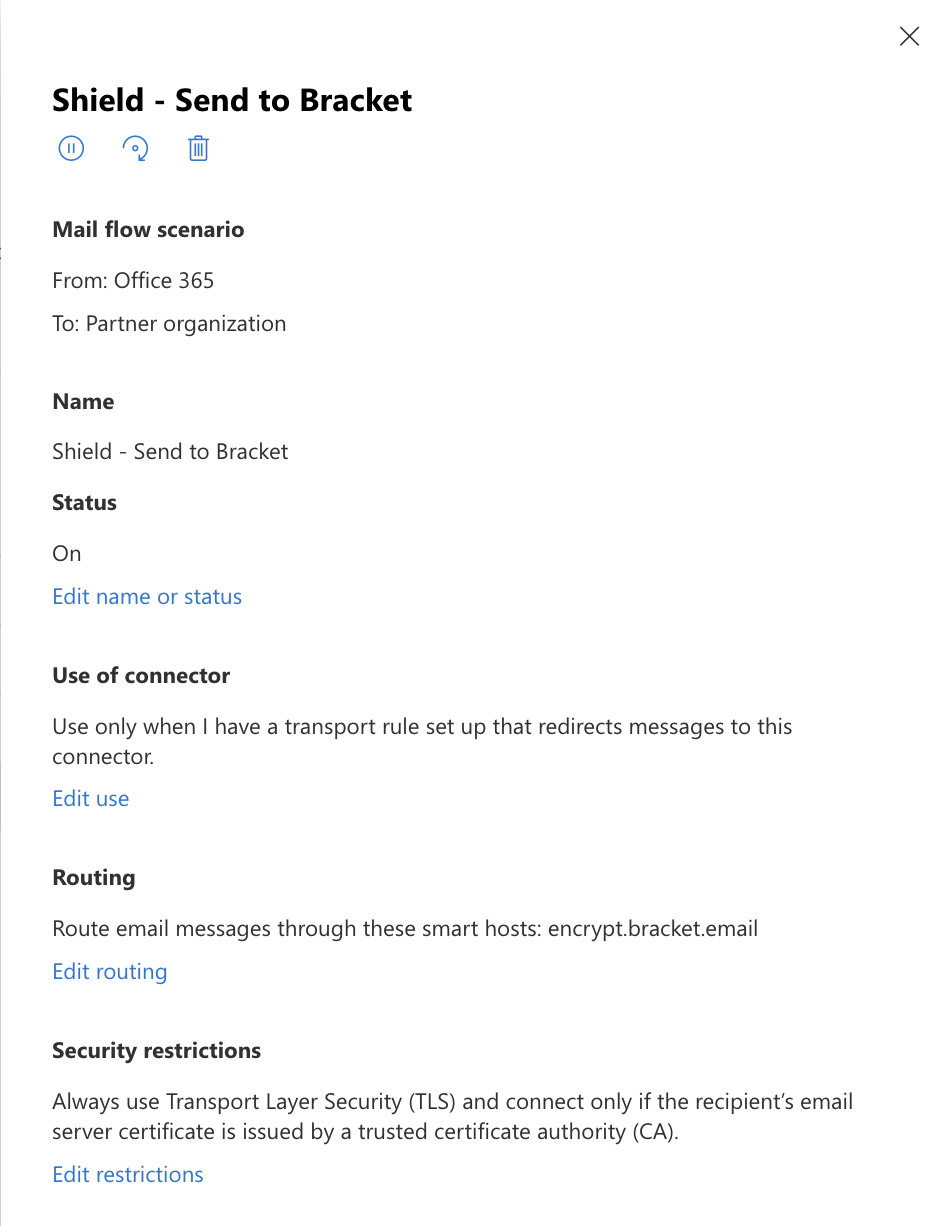

Shield - Send to Bracket connector.png
